Sensor, Wheel Speed, Front: Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

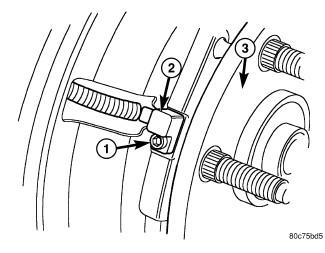

Fig 1: Identifying Front Wheel Speed Sensor
GC0083402Courtesy of CHRYSLER GROUP, LLC
1 - WHEEL SPEED SENSOR MOUNTING BOLT
2 - WHEEL SPEED SENSOR
3 - HUB/BEARING
  1. Remove the front rotor. Refer to ROTOR, BRAKE, REMOVAL .
  2. Remove the wheel speed sensor mounting bolt (1) from the hub (3).
  3. Remove the wheel speed sensor (2) from the hub (3).
  4. Remove the wiring from the clips and disconnect the electrical connector.
