Gasoline Engine
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.

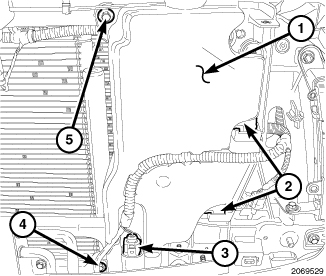

- Siphon the washer fluid from the washer reservoir (1) into a clean container for reuse.
- Remove the grille from the front of the vehicle. Refer to GRILLE , Removal .
- Remove the two screws (5) that secure the inboard washer reservoir mounting brackets at the top and bottom members of the Front End Module (FEM) carrier (also known as the radiator closure), just to the left of the cooling module.
- Pull the washer reservoir upward far enough to disengage the two mounting tabs (2) on the outboard side of the reservoir from the two slotted loops integral to the FEM carrier.
- Disconnect the FEM wire harness connector (3) from the washer pump/motor unit connector receptacle on the top of the motor housing.
- Disconnect the reservoir washer hose (4) from the barbed pump outlet nipple of the washer pump/motor unit.
- Disengage the reservoir washer hose and FEM wiring bundle from the routing trough integral to the front of the reservoir.

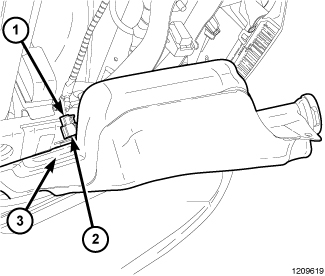

- Rotate the outboard side of the washer reservoir (3) away from the FEM carrier far enough to access and disconnect the FEM wire harness connector (1) from the washer fluid level switch connector receptacle (2) on the back of the reservoir.
- Remove the washer reservoir from the left side of the FEM carrier.
