Mast, Antenna: Installation: Installation
WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
- Tie the cord that was used during the removal procedure to the cable being installed.

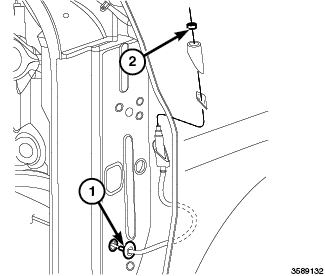

- Using the cord, pull the antenna cable through the hole in the door opening and seat grommet into place (1).
- Insert the antenna body through the hole in the fender and install adapter.
- Install and tighten the antenna cap nut (2) with the (special tool #C-4816, Socket, Antenna).

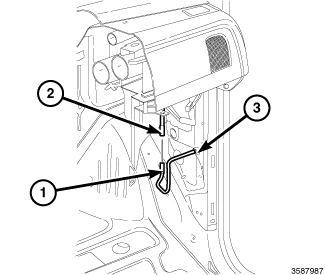

- Verify that the antenna grommet is fully seated (3).
- Connect the antenna mast connector (2) to the instrument panel antenna cable (1).
- Install the passenger cowl trim panel (1). Refer to PANEL, COWL TRIM, INSTALLATION .

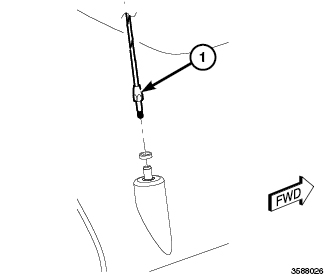

- Install the antenna mast (1).
- Connect the battery negative cable.
