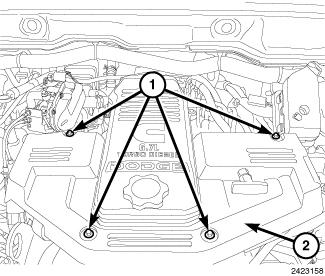

Fig 1: Removing/Installing EGR Crossover Tube Cover

Courtesy of CHRYSLER LLC

Disconnect both negative battery cables.

Remove four bolts (1) and remove EGR crossover tube cover (2).

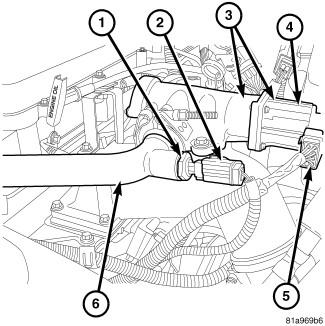

Fig 2: Removing/Installing EGR Temperature Sensor

Courtesy of CHRYSLER LLC

1	EGR Temperature Sensor
2	Sensor Harness Connector
3	Crossover Tube
4	EGR Actuator
5	EGR Actuator Harness Connector
6	EGR Tube

Disconnect electrical connector (5) at EGR actuator.

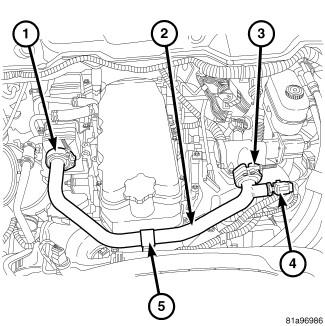

Fig 3: Removing/Installing EGR Crossover Tube
Courtesy of CHRYSLER LLC
Loosen (only) clamp (1). Remove clamp (3) at end of EGR Crossover Tube.
Loosen (only) bolt at "P" clamp (5) at center bottom of EGR Crossover Tube.

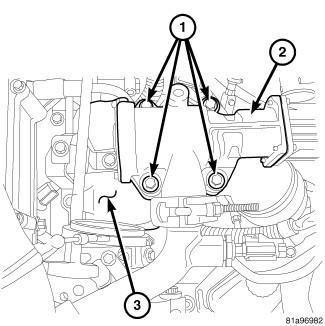

Fig 4: Removing/Installing EGR Valve Assembly - 6.7L
Courtesy of CHRYSLER LLC
Remove the four EGR valve assembly mounting bolts (1).
Remove EGR valve assembly (2) from intake connector (3) by prying up.

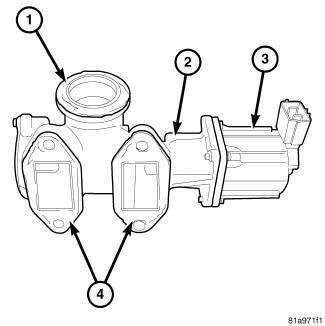

Fig 5: Removing/Installing EGR Valve Gaskets
Courtesy of CHRYSLER LLC
Remove crossover tube doughnut gasket (1) and clean EGR valve. Also clean end of EGR tube of any old gasket material.
Remove two gaskets on bottom EGR valve (4). Clean bottom of EGR valve and top of its intake connection point of any old gasket material.
