Pick Up Models

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Removing/Installing EGR Crossover Tube Cover
GC0108069Courtesy of CHRYSLER LLC
  1. Disconnect and isolate both negative battery cables at batteries.
  2. Remove bolts (1) and the EGR crossover tube cover (2).

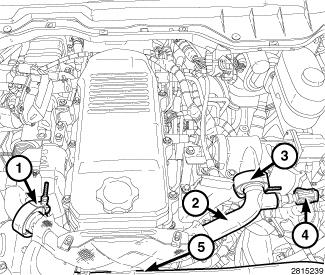

    Fig 2: Removing/Installing EGR Crossover Tube
    GC0137182Courtesy of CHRYSLER LLC
  3. Loosen and remove two clamps (1 and 3) at ends of EGR Crossover Tube (2).
  4. Disconnect the EGR temperature sensor harness connector (4).
  5. Remove clamp mounting bolt (5) at center bottom of EGR crossover tube.
  6. Remove EGR crossover tube (2).
  7. Remove and discard gaskets at each end of tube (2).
