VALVE, Positive Crankcase Ventilation (PCV), 4.7L: Installation: Installation

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

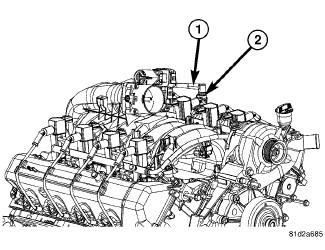

Fig 1: Removing/Installing Plastic Line

Courtesy of CHRYSLER LLC

Clean out PCV valve opening at valve cover.
Check condition of PCV valve o-ring.
Apply engine oil to o-ring.
Place PCV valve (2) into valve cover.
Attach plastic line (1) to valve.
