UNIT, Diesel Exhaust Fluid Dosing Control: Installation: Installation

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

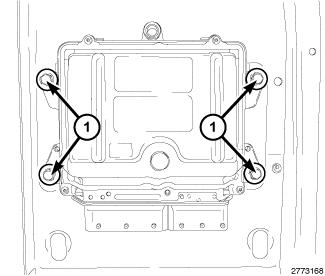

Fig 1: DEF Closing Control Unit Mounting Bolts

Courtesy of CHRYSLER LLC

NOTE:

For clarity purposes the Dosing Control Unit was removed from the frame mounting bracket.

Position the Diesel Exhaust Fluid (DEF) dosing control unit to bracket. Tighten bolts (1) to 12 N.m (106 in. lbs.) .

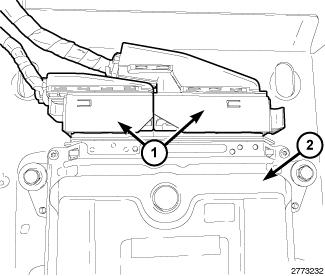

Fig 2: DEF Dosing Control Unit & Harness Connectors
Courtesy of CHRYSLER LLC

NOTE:
For clarity purposes the Dosing Control Unit was removed from the frame mounting bracket.
Connect the DEF dosing control unit (2) harness connector (1).
Connect both negative battery cables.
