Bank 1 Sensor 2
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The rear NOx sensor at the outlet side of the Selective Catalytic Reduction (SCR) has a black wire harness connector. Make sure the right NOx sensor is being installed.

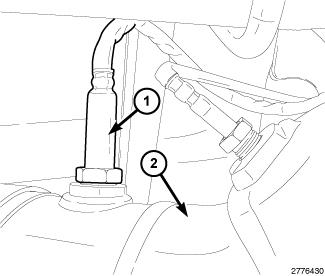

- Install the NOx sensor (1) into the Selective Catalytic Reduction (SCR) catalyst (2). Tighten NOx sensor (1) to 50 N.m 37 (ft. lbs.).
- Connect the wire harness retainers.

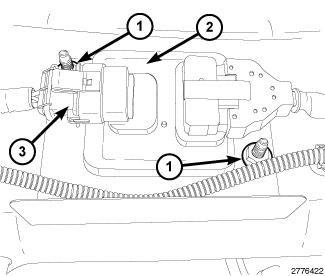

- Install the NOx sensor module (2). Tighten nuts (1) to 9 N.m (80 in. lbs.) .
- Connect the NOx sensor module harness connector (3).
- Connect both negative battery cables.
