Bank 1 Sensor 1

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

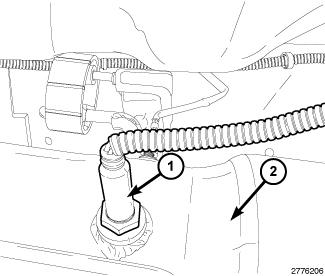

Fig 1: Removing/Installing NOx Sensor

Courtesy of CHRYSLER LLC

NOTE:

The front NOx sensor at the inlet side of the Diesel Particulate Filter (DEF) has a white wire harness connector. Make sure the right NOx sensor is being installed.

Install the NOx sensor (1) into the Diesel Oxidation Catalytic/Diesel Particulate Filter (DOC/DPF) (2). Tighten sensor (1) to 50 N.m (37 ft. lbs.).

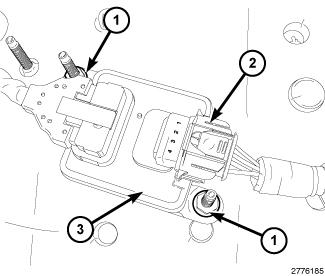

Fig 2: Removing/Installing NOx Sensor Module
Courtesy of CHRYSLER LLC
Install the NOx module (3). Tighten nuts (1) to 9 N.m (80 in. lbs.).
Connect the NOx sensor harness connector (2).

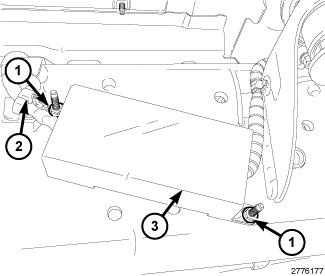

Fig 3: Removing/Installing NOx Sensor Module Cover, Nuts & Wire Harness Retainer
Courtesy of CHRYSLER LLC
Connect the NOx sensor wire harness retainers (2).
Install the NOx sensor module cover (3). Tighten nuts (1) to 9 N.m (80 in. lbs.).
Connect both negative battery cables.
