SENSOR, Diesel Exhaust Fluid Ambient Temperature: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

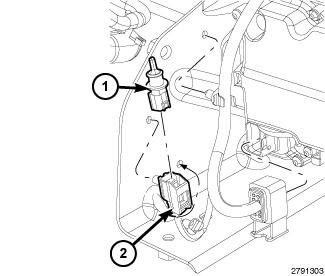

Fig 1: Removing/Installing DEF Ambient Temperature Sensor
GC0143751Courtesy of CHRYSLER LLC
  1. Disconnect both negative battery cables.
  2. Clean the area surrounding the Diesel Exhaust Fluid (DEF) ambient air temperature sensor
  3. Disconnect and remove the DEF ambient temperature sensor (1) from the harness connector (2).
