LINE, Diesel Exhaust Fluid Pressure: Removal: Removal
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect both negative battery cables.

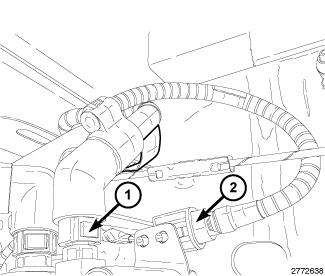

- Disconnect the Diesel Exhaust Fluid (DEF) pressure line (1) heater harness connector (2).
- Disconnect the DEF pressure line (1) at the DEF supply pump. Refer to STANDARD PROCEDURE - QUICK-CONNECT FITTINGS .
- Disconnect the DEF pressure line retainer at the frame rail and coolant lines (1).

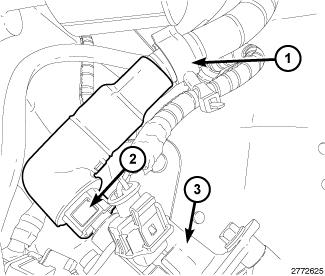

- Disconnect and remove the DEF pressure line (2) at DEF injector (3). Refer to STANDARD PROCEDURE - QUICK-CONNECT FITTINGS .
