ASSEMBLY, Diesel Exhaust Fluid Pump: Installation: Installation

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

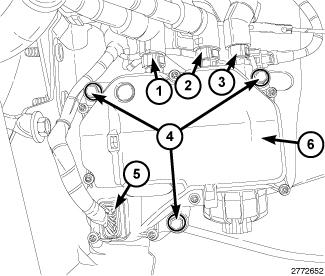

Fig 1: Removing/Installing DEF Supply Pump
GC0143718Courtesy of CHRYSLER LLC
  1. Install the Diesel Exhaust Fluid (DEF) supply pump (6) . Tighten bolts (4) to 25 N.m (18 ft. lbs.) .
  2. Connect the DEF supply pump harness connector (5).
  3. Connect the DEF pressure line (3).
  4. Connect the DEF return line (2).
  5. Connect the DEF supply line (1).
  6. Connect both negative battery cables.
