Section 23 (Charging (Service Information)): Generator: Removal: 3.7L/4.7L
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

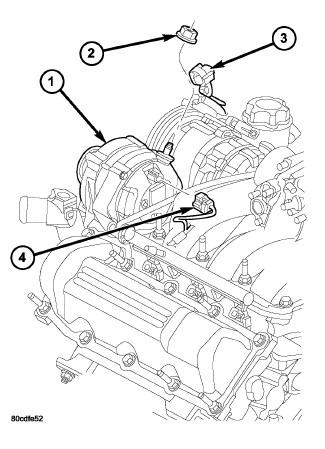

| 1 - GENERATOR |
| 2 - B+ NUT |
| 3 - PLASTIC INSULATOR CAP |
| 4 - FIELD WIRE CONNECTOR |
WARNING:
Disconnect the negative cable from the battery before removing the battery output wire (B+ wire) from the generator. Failure to do so can result in injury or damage to the electrical system.
- Disconnect the negative battery cable.
- Remove the generator drive belt. Refer to BELT, Serpentine, Removal .
- Unsnap the plastic insulator cap from the B+ output terminal (3). Refer to Fig 1.
- Remove the B+ terminal mounting nut at the rear of generator (2). Refer to Fig 1. Disconnect the terminal from the generator.
- Disconnect the field wire connector at the rear of the generator (4) by pushing on the connector tab. Refer to Fig 1.

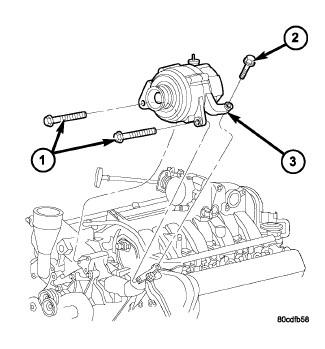

1 - LOWER BOLTS 2 - REAR BOLT 3 - GENERATOR - Remove the one rear vertical generator mounting bolt (2). Refer to Fig 2.
- Remove the two front horizontal generator mounting bolts (1). Refer to Fig 2.
- Remove the generator from vehicle.
