Driver Seat With Memory Seat System
WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.
- Remove the power seat switch from the seat. Refer to SWITCH, SEAT, POWER, REMOVAL .
- Use an ohmmeter to test the continuity of the power seat switch using the following table. If not OK, replace the inoperative power seat switch. If switch tests OK, check for an open or short in the power seat circuit wiring. If no open or short is found, replace the power adjuster motor(s) as required.

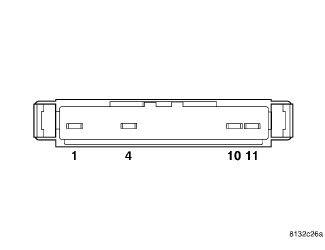

DRIVER SEAT SWITCH CONTINUITY - WITH MEMORY
| SWITCH POSITION | CONTINUITY BETWEEN | RESISTANCE VALUE |
|---|---|---|
| OFF | 10-4 | OPEN |
| OFF | 10-11 | OPEN |
| OFF | 1-4 | 47 OHMS |
| OFF | 1-11 | 47 OHMS |
| REAR TILT UP | 10-11 | 169 OHMS |
| REAR TILT DOWN | 10-11 | 76 OHMS |
| HORIZONTAL FORWARD | 10-11 | 43 OHMS |
| HORIZONTAL REARWARD | 10-11 | 10 OHMS |
| RECLINER UP | 10-4 | 43 OHMS |
| RECLINER DOWN | 10-4 | 10 OHMS |
| FRONT TILT UP | 10-4 | 169 OHMS |
| FRONT TILT DOWN | 10-4 | 76 OHMS |
| ALL RESISTANCE VALUES ARE ± FIVE PERCENT | ||
