Diagnosis And Testing - Leaks
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

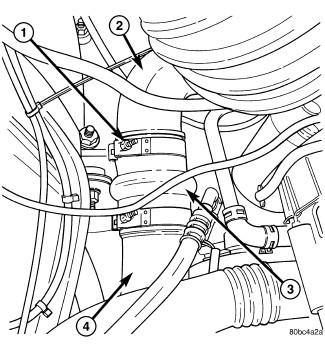

| 1 - CLAMP |
| 2 - TURBOCHARGER |
| 3 - AIR DUCT RUBBER SLEEVE |
| 4 - AIR INLET DUCT |
Low turbocharger boost pressure and low engine performance can be caused by leaks in the charge air cooler or plumbing. Fuel staining on the exhaust manifold can also be an indication that there are leaks in the air system. The following procedure outlines how to check for leaks in the charge air cooler system.
This procedure can also be used to check for leaks in the wastegate signal line or the wastegate canister.
- Loosen clamp and remove air inlet hose from turbocharger.
- Insert CAC Tester Tool (special tool #10137, Adapter, Charge Air) into the turbocharger inlet. Tighten tool clamp to 8 N.m (72 in. lbs.).CAUTION:
Do not apply more than 138 kPa (20 psi) air pressure to the charge air cooler system, severe damage to the charge air cooler system may occur.
- Connect a regulated air supply to air fitting on CAC Tester (special tool #10137, Adapter, Charge Air). Apply 27.5 - 55 kPa (4 - 20 psi) to Tool (special tool #10137, Adapter, Charge Air).
- Using MOPAR® Air Leak Detector, check the rubber sleeves, clamps, charge air cooler and intake manifold for leaks.
- Using MOPAR® Air Leak Detector check for leaks at the wastegate signal line, wastegate canister and wastegate command valve.
