MANIFOLD, Intake: Installation: Installation

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: EGR Air Flow Control Valve Location
GC0108834Courtesy of CHRYSLER LLC
  1. Clean all gasket mating surfaces.
  2. Using a new gasket, install the intake manifold (2). Tighten bolts to 24 N.m (18 ft. lbs.).
  3. Install bolt securing the oil dip stick tube-to-intake manifold and tighten to 24 N.m (18 ft. lbs.).
  4. Connect the boost pressure sensor harness connector.
  5. Connect the EGR valve harness connector.
  6. Connect EGR air flow control valve harness connector.
  7. Install the EGR crossover tube. Refer to TUBE, Exhaust Gas Recirculation (EGR), Crossover, Installation .

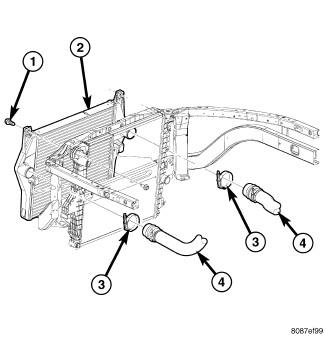

    Fig 2: Air Intake System Tubes
    GC0108447Courtesy of CHRYSLER LLC
  8. Connect the Charge Air Cooler (CAC) tube (4) to the EGR air flow control valve. Tighten clamp to 11 N.m (97 in. lbs.).
  9. Connect both negative battery cables.
