VALVE, Oil Pressure Relief: Removal: Removal
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

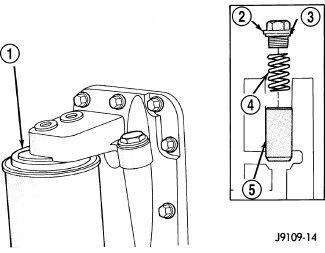

| 1 - OIL FILTER |
| 2 - PLUG |
| 3 - GASKET |
| 4 - SPRING |
| 5 - VALVE |
- Disconnect the battery negative cables.
- Remove the threaded plug (2), spring (4) and valve (5). Insert a finger or a seal pick to lift the plunger from the bore.
NOTE:
If the plunger is stuck in the bore, it will be necessary to remove the filter head.
