COOLER and LINES, Oil: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

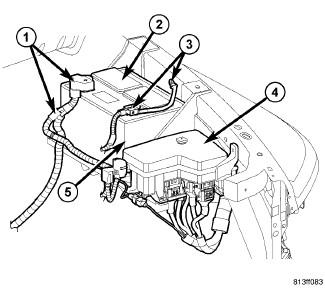

Fig 1: Locating Battery System Components (Typical)

Courtesy of CHRYSLER LLC

Disconnect both negative battery cables.
Drain the coolant. Refer to Standard Procedure .

Fig 2: Housing - Air Cleaner
Courtesy of CHRYSLER LLC

Remove air cleaner assembly. Refer to BODY, Air Cleaner, Removal, 6.7L .

Fig 3: Diesel Generator Connectors

Courtesy of CHRYSLER LLC

1 - B+ CONNECTOR

2 - GENERATOR

3 - FIELD WIRE CONNECTOR

Remove the generator. Refer to GENERATOR, Removal .

Fig 4: Identifying Clamp, Outlet Tube & Breather Hose
Courtesy of CHRYSLER LLC
Disconnect the breather hose (3).
Loosen the clamp (1) and remove the outlet tube (2) from the turbocharger.

Fig 5: Identifying Clamp & Outlet Tube
Courtesy of CHRYSLER LLC
Loosen clamp and disconnect the charge air inlet tube (4) from the turbocharger.

Fig 6: Identifying Clamp, Charge Inlet Tube & Charge Air Cooler (CAC)
Courtesy of CHRYSLER LLC
Loosen the clamp (2), disconnect the charge inlet tube (3) from Charge Air Cooler (CAC) (1) and remove charge inlet tube (3).

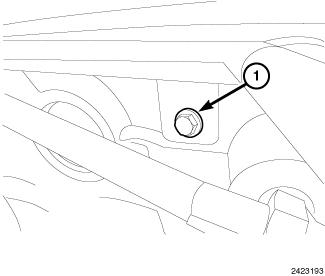

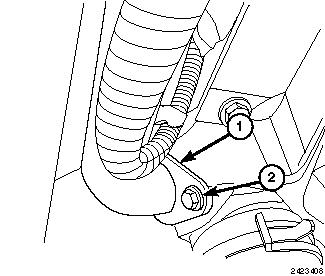

Fig 7: Installing Coolant Outlet Tube Bracket Bolt
Courtesy of CHRYSLER LLC
Remove the coolant outlet tube bracket bolt (1).

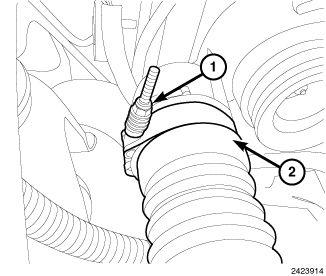

Fig 8: Installing Coolant Outlet Tube Bracket Nut
Courtesy of CHRYSLER LLC
Remove the coolant outlet tube bracket nut (1).

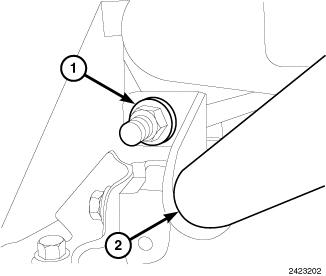

Fig 9: Installing Front Coolant Tube Bolt
Courtesy of CHRYSLER LLC
Remove the front coolant tube bolt (2).

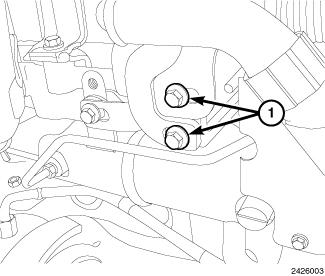

Fig 10: Identifying Bracket Bolts
Courtesy of CHRYSLER LLC
Remove the two bracket bolts.

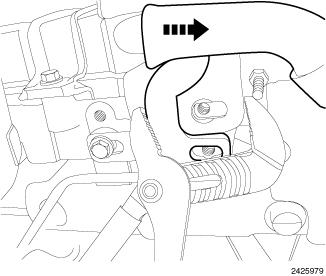

Fig 11: Using Channel Lock Pliers To Separate Top Connection Of Front Coolant Tube From EGR Cooler
Courtesy of CHRYSLER LLC
Using a suitable pair of channel lock pliers, separate the top connection of the front coolant tube from the EGR cooler.

Fig 12: Installing Front Coolant Tube Bolt
Courtesy of CHRYSLER LLC
Disconnect the front coolant tube (1) from lower the radiator port and remove the front coolant outlet tube (1).

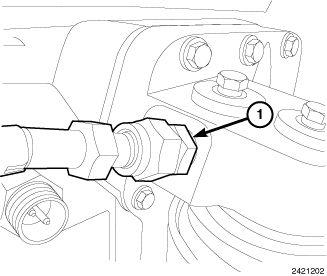

Fig 13: Turbocharger Oil Supply Line
Courtesy of CHRYSLER LLC
Remove the turbocharger oil supply line from oil cooler housing.

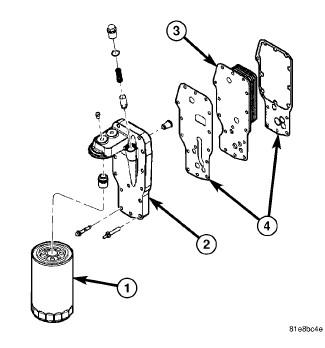

Fig 14: Identifying Oil Filter And Cooler
Courtesy of CHRYSLER LLC
Remove the oil filter. Refer to FILTER, Engine Oil, Removal, 6.7L .
Remove and remove the 14 oil cooler cap screws and remove oil cooler housing and oil cooler from engine block.
