As68RC Automatic

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

If replacing a engine mount/bracket, be certain to inspect all other engine mounts/brackets in the system. Failure to follow this caution may result in damage to the vehicle.

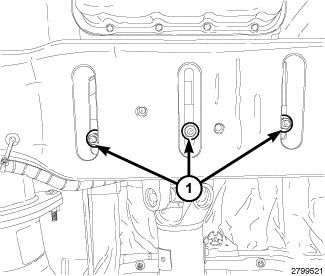

Fig 1: Identifying Rear Transmission Mount To Crossmember Nuts - AS68RC A/T
GC0137138Courtesy of CHRYSLER LLC
  1. Raise the vehicle on a hoist.
  2. Position a transmission jack in place.
  3. Remove the rear transmission mount to crossmember nuts (1).

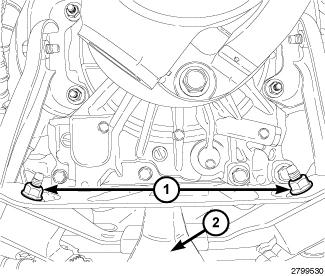

    Fig 2: Identifying Rear Transmission Mount & Nuts - AS68RC A/T
    GC0137139Courtesy of CHRYSLER LLC
  4. Remove nuts (4) securing the rear transmission mount.
  5. Using the transmission jack, raise the transmission.
  6. Remove the rear transmission mount (2).

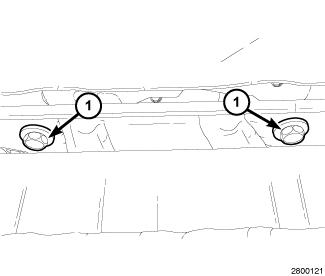

    Fig 3: Identifying Transmission Mount Support Bracket Bolts - AS68RC A/T
    GC0137140Courtesy of CHRYSLER LLC
  7. With the transmission raised, remove bolts (1) from the transmission mount support bracket to transmission.

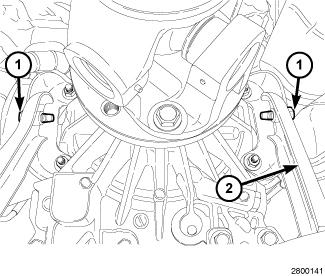

    Fig 4: Identifying Transmission Support Bracket & Bolts - AS68RC A/T
    GC0137141Courtesy of CHRYSLER LLC
  8. Remove the bolts (1) and the transmission support bracket (2).
