G 56 Manual

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

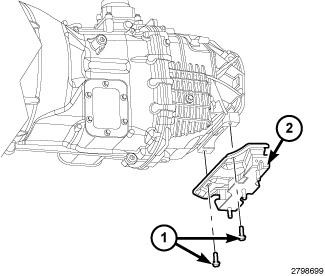

Fig 1: Identifying Rear Transmission Mount & Bolts (M/T)
GC0137142Courtesy of CHRYSLER LLC
  1. Install the rear transmission mount (2). Tighten bolts (1) to 50 N.m (37 ft. lbs.).
  2. Lower the transmission.
  3. Install nuts securing transmission mount to crossmember. Tighten nuts to 47 N.m (35 ft. lbs.).
  4. Remove transmission jack.
  5. Lower the vehicle.
