68RFE Automatic

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Rear Transmission Mount & Bolts - 68RFE A/T - 4WD

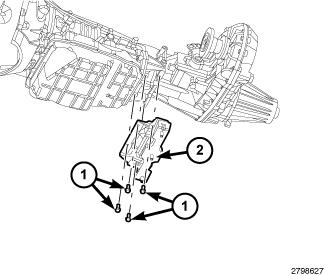

GC0137143Courtesy of CHRYSLER LLC
NOTE:

4x4 Models

  1. Install the rear transmission mount (2). Tighten bolts (1) to 50 N.m (37 ft. lbs.).
  2. Lower the transmission.
  3. Install nuts securing transmission mount to crossmember. Tighten nuts to 47 N.m (35 ft. lbs.).
  4. Remove transmission jack.
  5. Lower the vehicle.
    Fig 2: Identifying Rear Transmission Mount & Bolts - 68RFE A/T - 4X2 Regular Cab Models

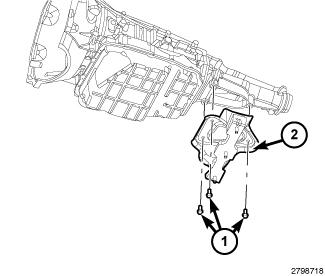

    GC0137144Courtesy of CHRYSLER LLC
    NOTE:

    4x2 Regular Cab Models.

  6. Install the rear transmission mount (2). Tighten bolts (1) to 50 N.m (37 ft. lbs.).
  7. Lower the transmission.
  8. Install nuts securing transmission mount to crossmember. Tighten nuts to 47 N.m (35 ft. lbs.).
  9. Remove transmission jack.
  10. Lower the vehicle.
    Fig 3: Identifying Rear Transmission Mount & Bolts - 68RFE A/T, 4X2 Crew & Mega Cab Models

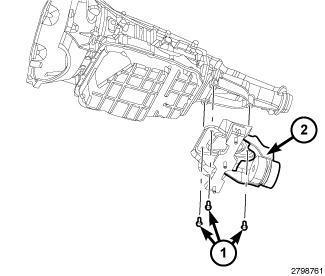

    GC0137145Courtesy of CHRYSLER LLC
    NOTE:

    4x2 Crew and Mega Cab Models.

  11. Install the rear transmission mount (2). Tighten bolts (1) to 50 N.m (37 ft. lbs.).
  12. Lower the transmission.
  13. Install nuts securing transmission mount to crossmember. Tighten nuts to 47 N.m (35 ft. lbs.).
  14. Remove transmission jack.
  15. Lower the vehicle.
