Cab Chassis

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

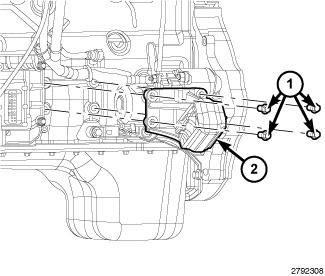

Fig 1: LH Engine Mount
GC0137137Courtesy of CHRYSLER LLC
NOTE:

4x4 engine mount shown in illustration, 4x2 similar.

  1. With engine raised SLIGHTLY  , install the LH mount (2) to engine. Tighten bolts (1) to 95 N.m (70 ft. lbs.).

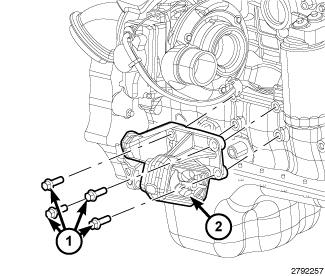

    Fig 2: RH Engine Mount
    GC0137136Courtesy of CHRYSLER LLC
  2. With engine raised SLIGHTLY  , install the RH mount (2) to engine. Tighten bolts (1) to 95 N.m (70 ft. lbs.).

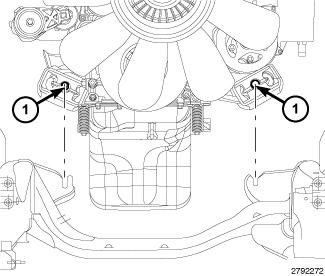

    Fig 3: Frame Mounts
    GC0137135Courtesy of CHRYSLER LLC
  3. Lower the engine support fixture tool (special tool #8534B, Fixture, Driveline Support), while guiding the mount and thru-bolt into the frame mounted brackets.
  4. Install the thru-bolt nut (1). Tighten nut (1) to 129 N.m (95 ft. lbs.).
  5. Remove the engine support fixture tool (special tool #8534B, Fixture, Driveline Support).
  6. Install the viscous fan/drive assembly. Refer to FAN, Cooling, Electric, Installation .
  7. Connect both negative battery cables.
