SEAL, Crankshaft Oil, Rear: Removal: Removal
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

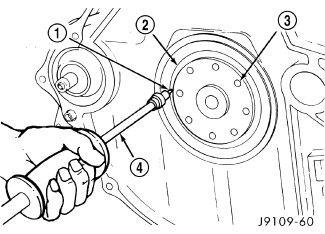

| 1 - NO. 10 SCREW |
| 2 - REAR SEAL |
| 3 - CRANKSHAFT |
| 4 - SLIDE HAMMER |
- Disconnect the battery negative cables.
- Remove the transmission and transfer case (if equipped).
- Remove the clutch cover and disc (if manual transmission equipped). Refer to DISC, Clutch, Removal .
- Remove the flywheel or converter drive plate.
- Remove the flywheel adapter plate.
- Drill holes 180° apart into the seal. Be careful not to contact the drill against the crankshaft.
- Install #10 sheet metal screws (1) in the drilled holes and remove the rear seal with a slide hammer (4).
