High Output Engine

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

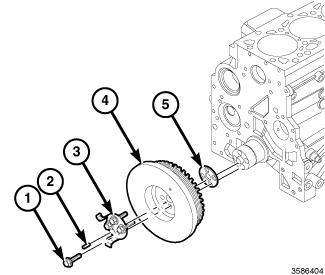

Fig 1: Crankshaft Damper (High Output Engine)
GC0143939Courtesy of CHRYSLER LLC
  1. Remove the accessory drive belt. Refer to BELT, Serpentine, Removal .
    NOTE:

    Ensure that the friction shim stays with the damper when it is removed. It will need to be reinstalled with the damper.

  2. Remove the four bolts (1), vibration damper (4), and friction shim (5).
