Engine Block: Crankshaft: Installation: Installation

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

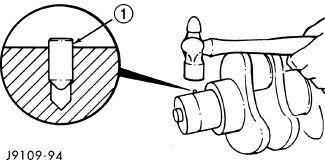

Fig 1: Installing Alignment Pin

Courtesy of CHRYSLER GROUP, LLC

Remove all burrs and make sure the gear surface on the end of the crankshaft is smooth.
If removed, install a new alignment pin (1). Drive the pin in using a ball- peen hammer, leaving it protruding 1.0 mm (0.039 inch) to 1.5 mm (0.059 inch) above the crankshaft.
WARNING:
WEAR PROTECTIVE GLOVES TO PREVENT INJURY.

CAUTION:
DO NOT heat the gear longer than 45 minutes.
Heat the crankshaft gear for 45 minutes at a temperature of 149°C (300°F). Do not use torch, gear failure will occur.
Apply a thin coat of lubricant to the nose of the crankshaft.
Position the gear with the timing mark out and install it on the crankshaft using the alignment pin. Make sure the gear contacts the shoulder.
Measure the connecting rod bearing journals and crankshaft prior to bearing installation. Refer to BEARING(S), Connecting Rod .
Measure the crankshaft bearing journals and crankshaft prior to bearing installation. Refer to BEARING(S), Crankshaft, Main .

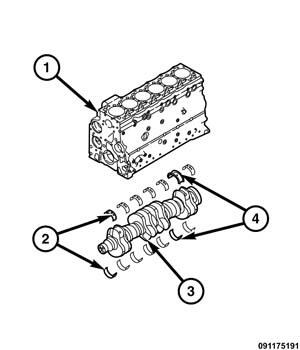

Fig 2: Engine Block & Crankshaft Components
Courtesy of CHRYSLER GROUP, LLC
Install the crankshaft main bearings (2) and thrust bearings (4) into engine block (1).
Install the crankshaft (3) into engine block (1).
Install the connecting rod bearings onto connecting rod and bearing cap for each piston. Tighten bolts finger tight.

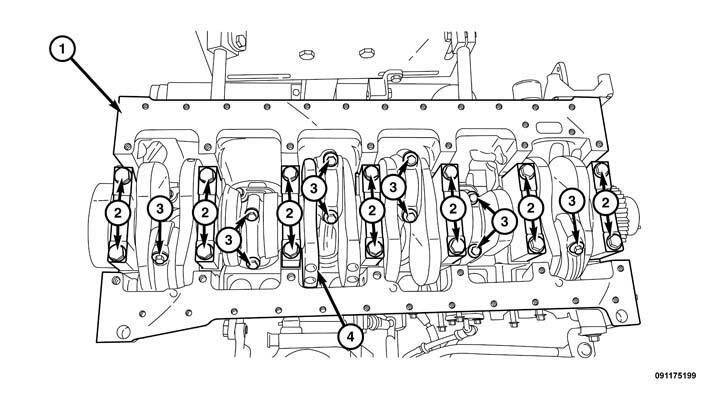

Fig 3: Connecting Rod Bearing Cap Bolts & Crankshaft Main Bearing Cap Bolts
Courtesy of CHRYSLER GROUP, LLC
Position the main bearing into main bearing cap and install the bearing cap onto engine block.
If
NEW

bolts (2) are being used then tighten the bolts in the following order:
- Tighten bolts to 120 N.m (89 ft. lbs.).
- Loosen bolts 360°.
- Tighten bolts to 60 N.m (44 ft. lbs.).
- Tighten bolts to 85 N.m (63 ft. lbs.).
- Tighten bolts an additional 120° turn.
If
USED

bolts (2) are being used then tighten the bolts in the following order:
- Tighten bolts to 60 N.m (44 ft. lbs.).
- Tighten bolts to 80 N.m (59 ft. lbs.).
- Tighten bolts an additional 90° turn.
Tighten the connecting rod bolts to (3) in the following order:
- Tighten bolts to 30 N.m (22 ft. lbs.).
- Tighten bolts to 60 N.m (44 ft. lbs.).
- Tighten bolts an additional 60° turn.

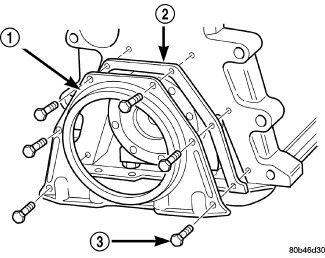

Fig 4: Crankshaft Rear Seal Retainer, Gasket & Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the crankshaft rear oil seal retainer (1). Refer to RETAINER, Crankshaft Rear Oil Seal .

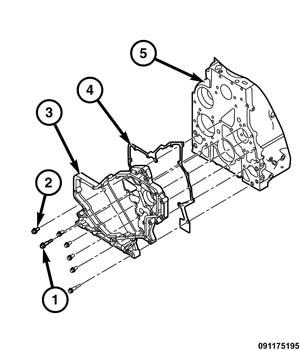

Fig 5: Front Timing Case Housing Components
Courtesy of CHRYSLER GROUP, LLC
Install the front timing case housing (2). Refer to HOUSING, Timing Case, Front .

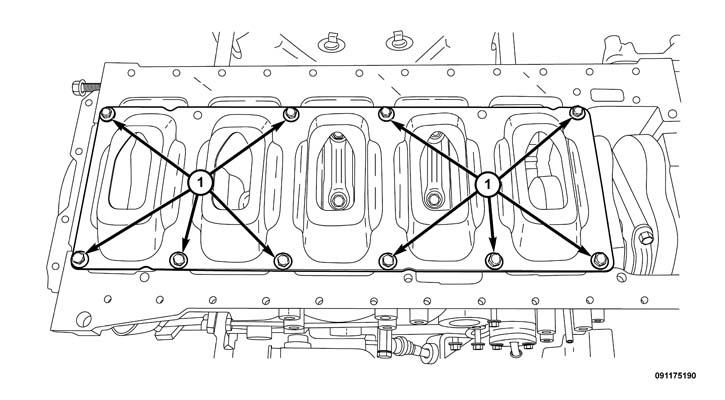

Fig 6: Block Stiffener & Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the engine block stiffener. Tighten bolts (1) to 43 N.m (32 ft. lbs.).

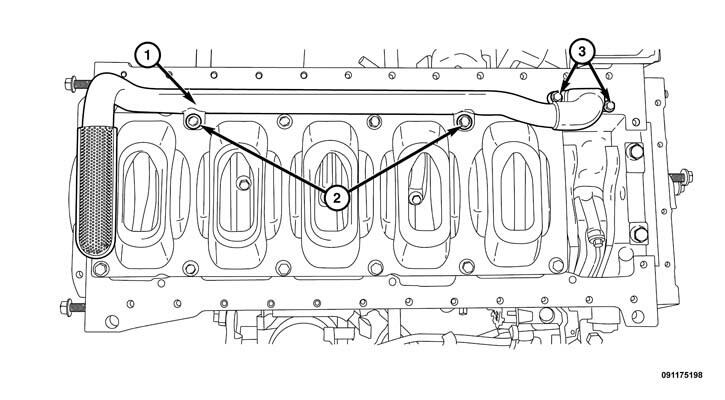

Fig 7: Oil Pickup Tube & Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the oil suction tube (1). Tighten bolts (1) to:
- M8 bolts, 24 N.m (18 ft. lbs.).
- M10 bolts, 43 N.m (32 ft. lbs.).

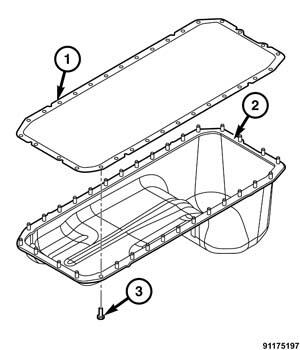

Fig 8: Oil Pan, Gasket & Bolt
Courtesy of CHRYSLER GROUP, LLC
Using a new gasket (1), install the oil pan (2). Tighten bolts (3) finger tight.

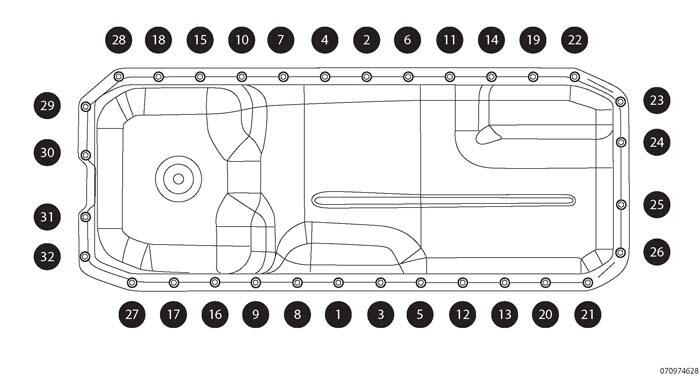

Fig 9: Oil Pan Bolt Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC
Using the tightening sequence shown in the illustration, tighten bolts to 28 N.m (21 ft. lbs.).
Install the engine. Refer to INSTALLATION .
Connect both negative battery cables.
