Cylinder Head Cover Gasket

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

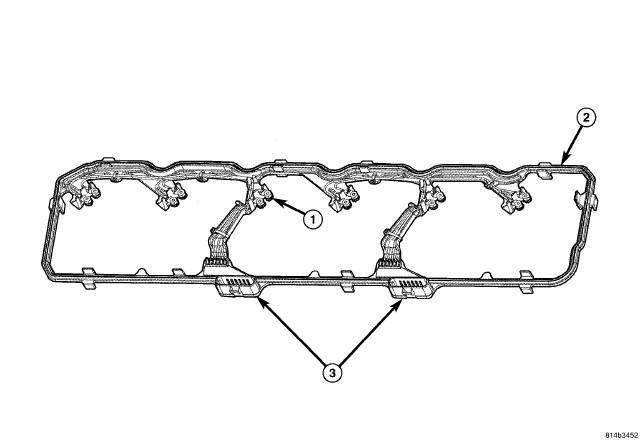

Fig 1: Cylinder Head Cover Gasket
GC0108508Courtesy of CHRYSLER LLC
1 - INJECTOR NUTS
2 - GASKET
3 - INJECTOR HARNESS CONNECTORS
  1. Remove cylinder head cover.
  2. Disconnect injector harness connectors (3) at cylinder head cover gasket.
  3. Remove injector solenoid nuts (1) at injectors.
  4. Remove cylinder head cover gasket (2).
