Rocker Housing

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

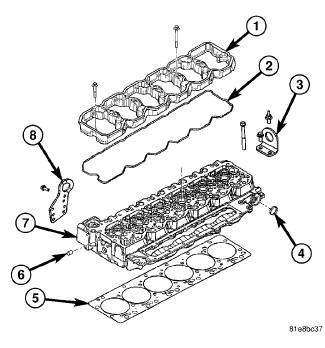

Fig 1: Cylinder Head And Gasket
GC0108488Courtesy of CHRYSLER LLC
  1. Inspect rocker housing gasket for cuts, nicks, or tears. Replace if damaged or if gasket has come out of groove.
  2. Inspect rocker housing gasket for proper installation in groove. Gasket bead must be centered in groove. A gasket bead that is tilted to the side will cause an oil leak.
    CAUTION:

    When installing rocker housing onto cylinder head, do not slide housing from side to side, The gasket could fall out or be damaged.

  3. Install the rocker housing. Carefully guide the rocker housing evenly down onto the cylinder head.
  4. Install rocker housing bolts and tighten finger tight.
  5. Tighten bolts, working from center out, to 24 N.m (18 ft. lbs.).
