DAMPER, Vibration: Installation: Installation
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
To prevent severe damage to the crankshaft, damper, and damper installer (special tool #8512A, Installer, Damper), thoroughly clean the damper bore and the crankshaft nose before installing damper.
- Position the damper onto crankshaft.

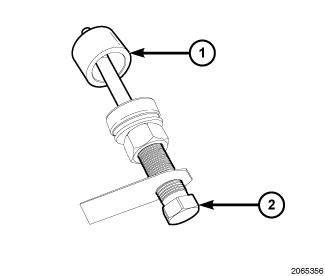

- Assemble the damper installer (special tool #8512A, Installer, Damper) (2) , and the pressing cup (1) from A/C hub installer (special tool #6871, Installer, A/C Hub).
- Using the damper installer (special tool #8512A, Installer, Damper) (2), and the pressing cup (1) from the A/C hub installer (special tool #6871, Installer, A/C Hub), press the damper onto crankshaft.
- Install the crankshaft damper bolt.
- Position the (special tool #10386, Holder, Vibration Damper) (2), onto the vibration damper (3).
- Tighten the bolt to 176 N.m (130 ft. lbs.).
- Install the cooling fan.
- Install the radiator upper shroud and tighten the fasteners to 11 N.m (95 in. lbs.).
- Install the radiator upper hose.

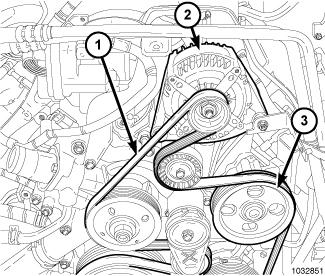

- Install the accessory drive belt (1). Refer to BELT, Serpentine , Installation .
- Refill the cooling system. Refer to Standard Procedure .
- Connect the negative cable to battery.
