BODY, Air Cleaner: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

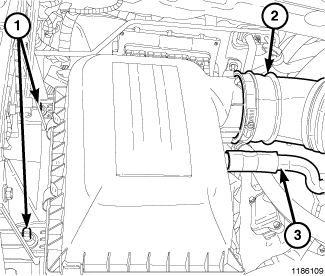

Fig 1: Clean Air Tube To Air Cleaner
GC0088034Courtesy of CHRYSLER LLC
  1. Disconnect the make up air hose (3).
  2. Remove clean air tube from air cleaner housing (2).
  3. Pull the air cleaner housing straight upward to disengage it from the grommets (1).
