Right Cylinder Head

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

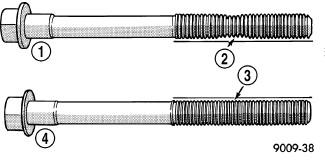

Fig 1: Checking Cylinder Head Bolts
GC0083579Courtesy of CHRYSLER LLC
NOTE:

The cylinder head bolts are tightened using a torque plus angle procedure. The bolts must be examined BEFORE reuse. If the threads are necked down (2) the bolts should be replaced.

Necking (2) can be checked by holding a straight edge against the threads. If all the threads do not contact the scale (2), the bolt should be replaced.

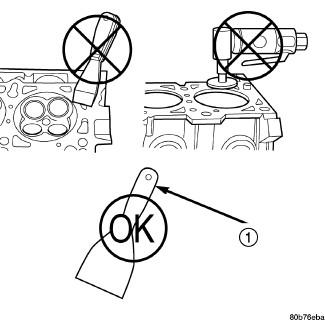

Fig 2: Cleaning Cylinder Head Cautions
GC0083580Courtesy of CHRYSLER LLC
1 - PLASTIC/WOOD SCRAPER
CAUTION:

When cleaning cylinder head and cylinder block surfaces, DO NOT use a metal scraper (1), high speed scotch brite (2) or rolock tool (3) because the surfaces could be cut or ground. Use only a wooden or plastic scraper (4).

  1. Clean the cylinder head and cylinder block mating surfaces.
    Fig 3: Cylinder Head Bolts Tightening Sequence
    GC0083577Courtesy of CHRYSLER LLC
  2. Position the new cylinder head gasket on the locating dowels.
    CAUTION:

    When installing cylinder head, use care not damage the tensioner arm or the guide arm.

  3. Position the cylinder head onto the cylinder block. Make sure the cylinder head seats fully over the locating dowels.
    NOTE:

    The four M8 cylinder head mounting bolts (11 - 14) require sealant to be added to them before installing. Failure to do so may cause leaks.

  4. Lubricate the cylinder head bolt threads with clean engine oil and install the ten M10 bolts.
  5. Coat the four M8 cylinder head bolts with Mopar® Thread Sealant with PTFE  then install the bolts.
    NOTE:

    The cylinder head bolts are tightened using an angle torque procedure.

  6. Tighten the bolts in sequence using the following steps and torque values:
    1. Tighten bolts 1 - 10 to 27 N.m (20 ft. lbs.).
    2. Verify that bolts 1 - 10 have all reached 27 N.m (20 ft. lbs.), by repeating step 1 without loosening the bolts.
    3. Tighten bolts 11 - 14 to 14 N.m (89 in. lbs.).
    4. Rotate bolts 1 - 10 an additional 90°.
    5. Rotate bolts 1 - 10 an additional 90° again.
    6. Tighten bolts 11 - 14 to 26 N.m (19 ft. lbs).
    Fig 4: Timing Chain To Sprocket Alignment
    GC0092071Courtesy of CHRYSLER LLC
    1 - LEFT CYLINDER HEAD
    2 - RIGHT CYLINDER HEAD
  7. Position the secondary chain onto the camshaft drive gear, making sure one marked chain link is on either side of the V8 mark on the gear (2) and position the gear onto the camshaft.
  8. Install the camshaft drive gear retaining bolt.
  9. Install the right side secondary chain guide. Refer to CHAIN and SPROCKETS, Timing , Installation , 4.7L .

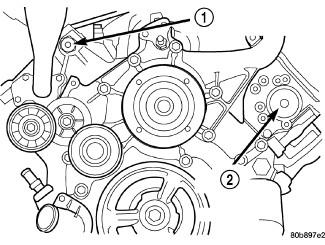

    Fig 5: Identifying Access Plugs From Left And Right Cylinder Heads
    GC0083581Courtesy of CHRYSLER LLC
    1 - RIGHT CYLINDER HEAD ACCESS PLUG
    2 - LEFT CYLINDER HEAD ACCESS PLUG
  10. Install the right side cylinder head access plug (1).
  11. Reset and install the right side secondary chain tensioner.

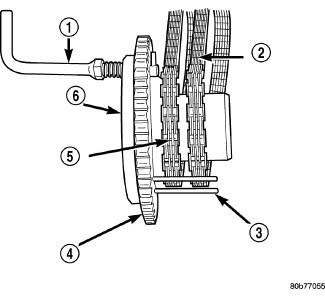

    Fig 6: Installing Special Tool
    GC0083183Courtesy of CHRYSLER LLC
    1 - LOCK ARM
    2 - RIGHT CAMSHAFT CHAIN
    3 - SECONDARY CHAINS RETAINING PINS (4)
    4 - IDLER SPROCKET
    5 - LEFT CAMSHAFT CHAIN
    6 - SECONDARY CAMSHAFT CHAIN HOLDER 8429
  12. Remove Secondary Camshaft Chain Holder (special tool #8429, Holder, Secondary Camshaft Chain) (6).
  13. Install the timing chain cover. Refer to COVER(S), Engine Timing , Installation , 4.7L .
  14. Install the crankshaft damper. Refer to DAMPER, Vibration , Installation , 4.7L .
  15. Install accessory drive belt.
  16. Install the fan shroud.
    Fig 7: Identifying Cylinder Head Cover (Right Side)
    GC0083181Courtesy of CHRYSLER LLC
  17. Install the cylinder head cover (1). Refer to COVER(S), Cylinder Head , Installation , 4.7L .

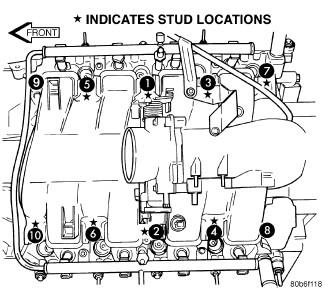

    Fig 8: Identifying Removal & Installation Sequence Of Intake Manifold Retaining Fasteners
    GC0083582Courtesy of CHRYSLER LLC
  18. Install the intake manifold. Refer to MANIFOLD, Intake , Installation , 4.7L .
  19. Install oil fill housing onto cylinder head.
  20. Refill the cooling system. Refer to Standard Procedure .
  21. Raise the vehicle.
  22. Drain oil.
  23. Install the exhaust pipe onto the right exhaust manifold.
  24. Lower the vehicle.
  25. Fill with new engine oil.
  26. Reconnect battery negative cable.
  27. Start the engine and check for leaks.
