Left Cylinder Head

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Checking Cylinder Head Bolts For Stretching (Necking)
GC0081335Courtesy of CHRYSLER LLC
NOTE:

The cylinder head bolts are tightened using a torque plus angle procedure. The bolts must be examined BEFORE reuse. If the threads are necked down (2) the bolts should be replaced.

Necking can be checked by holding a straight edge against the threads. If all the threads do not contact the scale, the bolt should be replaced.

Fig 2: Proper Tool Usage For Surface Preparation
GC0092047Courtesy of CHRYSLER LLC
1 - PLASTIC/WOOD SCRAPER
CAUTION:

When cleaning cylinder head and cylinder block surfaces, DO NOT use a metal scraper (1), high speed scotch brite (2) or rolock tool (3) because the surfaces could be cut or ground. Use only a wooden or plastic scraper (4).

  1. Clean the cylinder head and cylinder block mating surfaces.

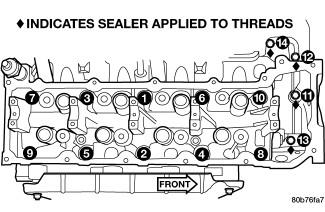

    Fig 3: Cylinder Head Bolts Tightening Sequence
    GC0083575Courtesy of CHRYSLER LLC
  2. Position the new cylinder head gasket on the locating dowels.
    CAUTION:

    When installing cylinder head, use care not damage the tensioner arm or the guide arm.

  3. Position the cylinder head onto the cylinder block. Make sure the cylinder head seats fully over the locating dowels.
    NOTE:

    The four M8 cylinder head mounting bolts (11 - 14) require sealant to be added to them before installing. Failure to do so may cause leaks.

  4. Lubricate the cylinder head bolt threads with clean engine oil and install the ten M11 bolts.
  5. Coat the four M8 cylinder head bolts with Mopar® Thread Sealant with PTFE  then install the bolts.
    NOTE:

    The cylinder head bolts are tightened using an torque angle procedure.

  6. Tighten the bolts in sequence using the following steps and torque values:
    1. Tighten bolts 1 - 10 to 27 N.m (20 ft. lbs.).
    2. Verify that bolts 1 - 10 have all reached 27 N.m (20 ft. lbs.), by repeating step 1 without loosening the bolts.
    3. Tighten bolts 11 - 14 to 14 N.m (89 in. lbs.).
    4. Rotate bolts 1 - 10 an additional 90°.
    5. Rotate bolts 1 - 10 an additional 90° again.
    6. Tighten bolts 11 - 14 to 26 N.m (19 ft. lbs).
    Fig 4: Timing Chain To Sprocket Alignment
    GC0092071Courtesy of CHRYSLER LLC
    1 - LEFT CYLINDER HEAD
    2 - RIGHT CYLINDER HEAD
  7. Position the secondary chain onto the camshaft drive gear, making sure one marked chain link is on either side of the V8 mark on the gear and position the gear onto the camshaft.
  8. Install the camshaft drive gear retaining bolt.
  9. Install the left side secondary chain guide. Refer to CHAIN and SPROCKETS, Timing , Installation , 4.7L .
    Fig 5: Identifying Access Plugs From Left And Right Cylinder Heads
    GC0082890Courtesy of CHRYSLER LLC
    1 - RIGHT CYLINDER HEAD ACCESS PLUG
    2 - LEFT CYLINDER HEAD ACCESS PLUG
  10. Install the cylinder head access plug (2).
  11. Reset and Install the left side secondary chain tensioner. Refer to CHAIN and SPROCKETS, Timing , Installation , 4.7L .

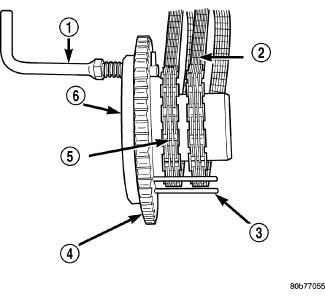

    Fig 6: Installing Special Tool
    GC0083578Courtesy of CHRYSLER LLC
    1 - LOCK ARM
    2 - RIGHT CAMSHAFT CHAIN
    3 - SECONDARY CHAINS RETAINING PINS (4)
    4 - IDLER SPROCKET
    5 - LEFT CAMSHAFT CHAIN
    6 - SECONDARY CAMSHAFT CHAIN HOLDER 8429
  12. Remove Secondary Camshaft Chain Holder (special tool #8429, Holder, Secondary Camshaft Chain) (6).
  13. Install the timing chain cover. Refer to COVER(S), Engine Timing , Installation , 4.7L .
  14. Install the crankshaft damper. Refer to DAMPER, Vibration , Installation , 4.7L .
  15. Install the power steering pump.
  16. Install the fan blade assembly and fan shroud.
    Fig 7: Cylinder Head Cover - Left
    GC0092070Courtesy of CHRYSLER LLC
  17. Install the cylinder head cover. Refer to COVER(S), Cylinder Head , Installation , 4.7L .
  18. Reinstall the master cylinder and booster assembly. Refer to BASE BRAKE - SERVICE INFORMATION article.
  19. Install the intake manifold. Refer to MANIFOLD, Intake , Installation , 4.7L .
  20. Fill the cooling system. Refer to Standard Procedure .
  21. Raise the vehicle.
  22. Install the exhaust pipe onto the left exhaust manifold.
  23. Drain oil.
  24. Lower the vehicle.
  25. Fill with oil.
  26. Connect the negative cable to the battery.
  27. Start the engine and check for leaks.
