Left Side

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

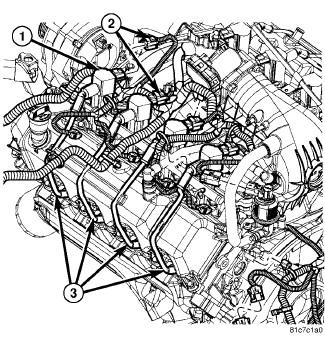

Fig 1: IGNITION COIL - 4.7L
GC0082846Courtesy of CHRYSLER LLC
  1. Disconnect negative cable from battery.
  2. Remove the resonator assemble and air inlet hose.
  3. Remove the spark plug wires (3).
  4. Route injector harness in front of cylinder head cover.
  5. Disconnect the left side breather tube and remove the breather tube.
  6. Remove the cylinder head cover mounting bolts.
  7. Remove cylinder head cover and gasket.
NOTE:

The gasket may be used again, provided no cuts, tears, or deformation has occurred.
