Right Side

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

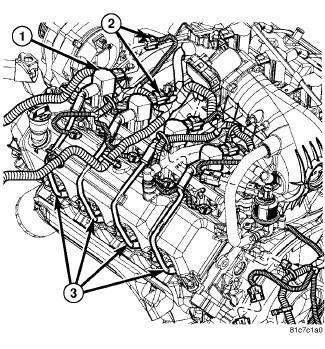

Fig 1: IGNITION COIL - 4.7L
GC0082847Courtesy of CHRYSLER LLC
CAUTION:

Do not use harsh cleaners to clean the cylinder head covers. Severe damage to covers may occur.

  1. Clean cylinder head cover and both sealing surfaces. Inspect and replace gasket as necessary.
  2. Install cylinder head cover and hand start all fasteners.
  3. Tighten cylinder head cover bolts and double ended studs to 12 N.m (105 in. lbs).
  4. Install right rear breather tube and filter assembly.
  5. Install spark plug wires (3).
  6. Install the oil fill tube.
  7. Install PCV hose.
  8. Install heater hoses.
  9. Install air conditioning compressor retaining bolts.
  10. Install accessory drive belt. Refer to BELT, Serpentine , Installation .
  11. Fill Cooling system. Refer to Standard Procedure .
  12. Install air cleaner assembly, resonator assembly and air inlet hose.
  13. Connect battery negative cable.
