Standard Procedure - Camshaft End Play

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

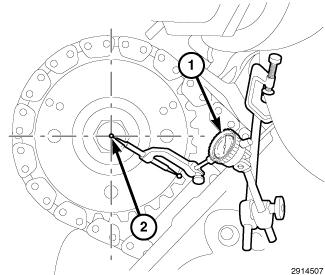

Fig 1: Positioning Dial Indicator Tip Against Camshaft
GC0137123Courtesy of CHRYSLER LLC
  1. Remove the cylinder head cover. Refer to COVER(S), Cylinder Head , Removal , 4.7L .
  2. Mount Dial Indicator Set (special tool #C-3339A, Set, Dial Indicator) (1) to a stationary point at the front of the engine.
  3. Position the dial indicator tip against the camshaft (2).
  4. Push the camshaft toward rear of engine and adjust the dial indicator to zero.
  5. Move the camshaft forward and note reading.
  6. Camshaft end play must be within specification, if end play is not within specification replace defective part as necessary. Refer to Specifications .
