Installation - Left Camshaft

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Positioning Camshaft Cap Arrow Toward Front Of Engine
GC0104630Courtesy of CHRYSLER LLC
  1. Lubricate the camshaft journals with clean engine oil.
    NOTE:

    Position the left side camshaft so that the camshaft sprocket dowel is near the 1 o'clock position, this will place the camshaft at the neutral position easing the installation of the camshaft bearing caps.

  2. Install the camshaft into the cylinder head while aligning the camshaft sprocket dowel near the 1 o'clock position.
    NOTE:

    The camshaft caps are marked for location. The arrow must point to the front of the engine.

  3. Install the camshaft bearing caps in the same position as noted during removal.
  4. Install the camshaft bearing cap retaining bolts hand tight.
    Fig 2: Removal/Installation Sequence Of Camshaft Bearing Cap Retaining Bolts
    GC0082840Courtesy of CHRYSLER LLC
  5. Using the sequence shown in illustration, working in 1/2 turn increments, tighten the bearing cap retaining bolts to 11 N.m (8 ft. lbs.).
  6. Check the camshaft end play. Refer to CAMSHAFT, Engine , Standard Procedure , 4.7L .
    Fig 3: Removing/Installing Camshaft Holder On Camshaft
    GC0104629Courtesy of CHRYSLER LLC
  7. Position the camshaft drive gear into the timing chain while aligning the two dots on the camshaft sprocket with the chain link (2) marked during removal.
  8. Using Camshaft Holder (special tool #8428A, Holder, Camshaft) (1), rotate the camshaft until the camshaft sprocket dowel is aligned with the slot in the camshaft sprocket.
  9. Position the sprocket onto the camshaft.
    CAUTION:

    Remove excess oil from the camshaft sprocket retaining bolt, failure to do so can cause bolt over-torque resulting in bolt failure.

  10. Remove excess oil from the camshaft sprocket retaining bolt.
  11. Install the camshaft sprocket retaining bolt hand tight.

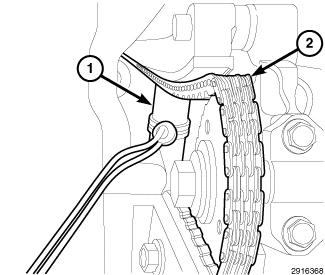

    Fig 4: Positioning Locking Wedge Between Timing Chain Strands
    GC0137127Courtesy of CHRYSLER LLC
  12. Remove the timing chain (2) Locking Wedge (special tool #9867, Wedge, Locking) (1).
    Fig 5: Tightening Left Side Camshaft Sprocket Bolt
    GC0082842Courtesy of CHRYSLER LLC
  13. Using Spanner Wrench (special tool #6958, Wrench, Spanner) (4) with Adapter Pins (special tool #8346, Pins, Adapter), secure the camshaft sprocket (2) and tighten the retaining bolt (1) to 122 N.m (90 ft. lbs.).
    Fig 6: Cylinder Head Cover - Left
    GC0092070Courtesy of CHRYSLER LLC
  14. Install the cylinder head cover (1). Refer to COVER(S), Cylinder Head , Installation , 4.7L .
