Curb Height Measurement

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

The wheel alignment is to be checked and all alignment adjustments made with the vehicle at its required curb height specification.

Vehicle height is to be checked with the vehicle on a flat, level surface, preferably a vehicle alignment rack. The tires are to be inflated to the recommended pressure. All tires are to be the same size as standard equipment. Vehicle height is checked with the fuel tank full of fuel, and no passenger or luggage compartment load.

Inspect the vehicle for bent or weak suspension components. Compare the parts tag on the suspect coil spring(s) to the parts book and the vehicle sales code, checking for a match. Once removed from the vehicle, compare the coil spring height to a correct new or known good coil spring. The heights should vary if the suspect spring is weak.

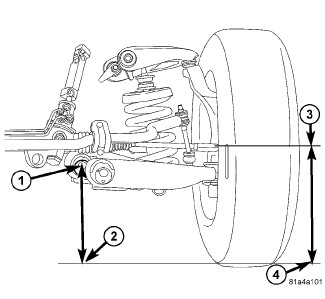

Fig 1: Front Curb Height Measurement (LD)
GC0083187Courtesy of CHRYSLER LLC
  1. Front - On each side of the vehicle, measure the distance from the center of the rear lower control arm bolt (1) to the ground (2) Record the measurement  . Next measure the distance from the spindle center (3) to the ground (4) Record the measurement.
  2. Take the two measurements and subtract them to get the curb height specification.

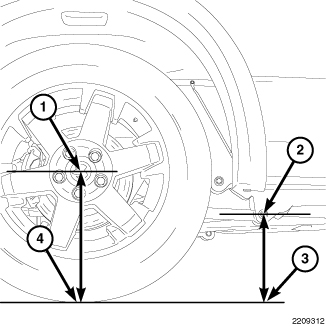

    Fig 2: Measuring Distance From Center Of Lower Control Arm Forward Bolt To Ground
    GC0086922Courtesy of CHRYSLER LLC
  3. Rear - On each side of the vehicle, measure the distance from the center of the lower control arm forward bolt (2) to the ground (3) Record the measurement  . Next measure the distance from the center of the rear wheel (1) to the ground (4) Record the measurement.
  4. Subtract the control arm bolt to floor measurement from the wheel to floor measurement to calculate the ride height. (wheel - control arm = ride height).
CURB HEIGHT SPECIFICATIONS - FRONT

MODEL  FRONT
4X4 Without TRX 64 mm - 84 mm
2.5 in. - 3.3 in.
4X4 With TRX 45 mm - 65 mm
1.77 in. - 2.5 in.
4X2 With TRX 35 mm - 55 mm
1.37 in. - 2.16 in.
4X2 With 17 in. Wheels Without TRX 47 mm - 67 mm
1.85 in. - 2.63 in.
4X2 With 20 in. wheels 35 mm - 55 mm
1.37 in. - 2.16 in.
CURB HEIGHT SPECIFICATIONS - REAR, 120 WHEELBASE

MODEL  REAR
4X4 Without TRX 60 mm - 80 mm
2.36 in. - 3.14 in
4X4 With TRX 48 mm - 68 mm
1.88 in. - 2.67 in
4X2 With TRX 72 mm - 92 mm
2.83 in. - 3.62 in
4X2 With 17 in. Wheels Without TRX 72 mm - 92 mm
2.83 in. - 3.62 in
4X2 With 20 in. wheels 69 mm - 89 mm
2.71 in. - 3.5 in
CURB HEIGHT SPECIFICATIONS - REAR, 140 WHEELBASE

MODEL  REAR
4X4 Without TRX 58 mm - 78 mm
2.28 in. - 3.07 in
4X4 With TRX 46 mm - 66 mm
1.81 in. - 2.59 in
4X2 With TRX 71 mm - 91 mm
2.79 in. - 2.8 in
4X2 With 17 in. Wheels Without TRX 71 mm - 91 mm
2 in. - 3.58 in
4X2 With 20 in. wheels 69 mm - 89 mm
2.71 in. - 3.5 in
