Stabilizer Bar
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

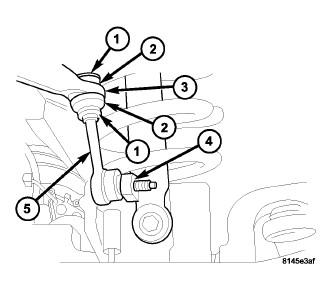

| 1 - RETAINER |
| 2 - GROMMET |
| 3 - STABILIZER BAR |
| 4 - AXLE BRACKET |
| 5 - STABILIZER LINK |
- Raise and support the vehicle.
- Hold the stabilizer link (5) shafts with a wrench and remove the link nuts at the stabilizer bar (3).
- Remove the retainers (1) and grommets (2) from the stabilizer bar links (5).
- Remove the stabilizer bar clamps from the frame rails and remove the stabilizer bar.
