Disconnecting Stabilizer Bar

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

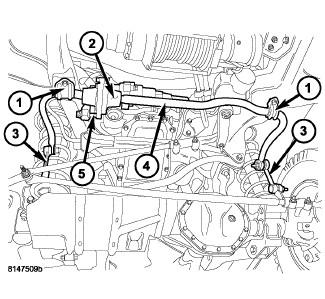

Fig 1: Disconnecting Stabilizer Bar Unit

Courtesy of CHRYSLER LLC

WARNING:

The disconnecting stabilizer bar unit (2) is not serviced separately from the bar (4). Do not disassemble this unit (2) from the stabilizer bar (4).

NOTE:

The stabilizer links (5), stabilizer bar retainers/bushings (3), stabilizer bar with the disconnecting unit as an assembly (4) and the stabilizer bar actuator (1) are the only are serviceable components.

NOTE:

When replacing the disconnecting stabilizer bar with a new bar you must use a scan tool to program the new stabilizer bar to the vehicle.

Fig 2: Identifying Stabilizer Link, Nuts, And Stabilizer Bar

Courtesy of CHRYSLER LLC

Raise and support the vehicle.
Hold the stabilizer link (1) shafts with a wrench and remove the link nuts (3) at the stabilizer bar (2).

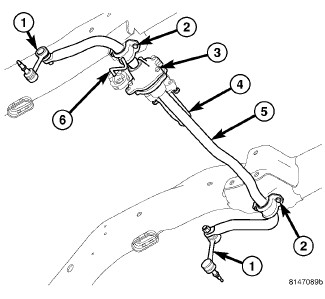

Fig 3: Disconnecting Stabilizer Bar
Courtesy of CHRYSLER LLC

NOTE:
Before removing the connector (4) from the actuator clean the outside of the connector with a cleaner and compressed air, to remove any dirt or debris.
Disconnect the electronic actuator electrical connector (4) for the disconnecting stabilizer bar (5).
Remove the 3 bolts securing the disconnecting stabilizer actuator If replacing the stabilizer bar , refer to ACTUATOR, Stabilizer Bar , Removal .

Fig 4: Identifying Stabilizer Bar And Retainers
Courtesy of CHRYSLER LLC
Remove the stabilizer bar retainers (1) from the frame rails and remove the stabilizer bar (4).
