Stabilizer Link With Disconnecting Stabilizer Bar

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Stabilizer Link, Nuts, And Stabilizer Bar
GC0107552Courtesy of CHRYSLER LLC
  1. Raise and support the vehicle.
  2. Hold the stabilizer link (1) shafts with a wrench and remove the link nuts (3) at the stabilizer bar (2).

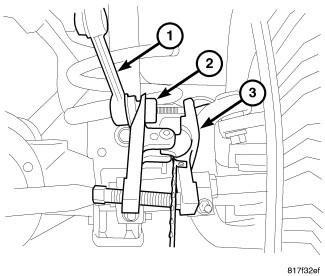

    Fig 2: Identifying Stabilizer Link, Axle Brackets & Puller
    GC0107553Courtesy of CHRYSLER LLC
  3. Remove the stabilizer bar link nuts from the axle brackets (2).
  4. Remove the links (1) from the axle brackets (2) with Puller (special tool #9360, Remover, Ball Joint) (3) .
