2500, 3500

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the hub bearing. Refer to HUB AND BEARING , Removal .
  2. Remove tie-rod or drag link end from the steering knuckle arm.
  3. Remove the wheel speed sensor. Refer to SENSOR, Wheel Speed, Front , Removal .
  4. Loosen the upper ball stud nut.Do not remove the nut at this time.
  5. Remove the lower ball joint nut.

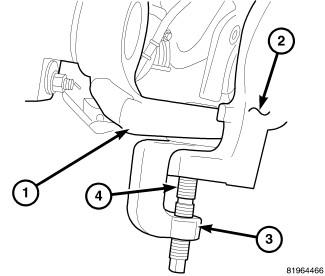

    Fig 1: Identifying Lower Ball Joint And Steering Knuckle
    GC0107544Courtesy of CHRYSLER LLC
  6. Separate the lower ball joint (4) using Ball Joint Press (special tool #C-4150A, Press, Ball Joint) (3).
  7. Remove the upper ball joint nut.
  8. Remove the steering knuckle (2).
