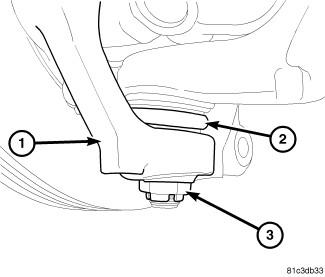

Fig 1: Identifying Lower Ball Joint Nut

Courtesy of CHRYSLER LLC

Position the steering knuckle (1) on the ball stud.
Install and tighten the lower ball stud nut (3) to specifications. Refer to SPECIFICATIONS .

Fig 2: Upper Ball Joint
Courtesy of CHRYSLER LLC

NOTE:
Make sure the wheel speed sensor bracket (3) for the wire is installed between the knuckle and ball joint (2).
Install the upper ball joint (2) into the steering knuckle and tighten to specifications. Refer to SPECIFICATIONS .

Fig 3: Upper Ball Joint Nut
Courtesy of CHRYSLER LLC
Install and tighten the upper ball stud nut (1) to specifications. Refer to SPECIFICATIONS .
Retorque the lower ball stud nut to specifications. Refer to SPECIFICATIONS .

Fig 4: Hub/Bearing Bolts
Courtesy of CHRYSLER LLC
Install the hub bearing and tighten the bolts (1) to specifications. Refer to SPECIFICATIONS .

Fig 5: Identifying Wheel Speed Sensor And Mounting Bolt
Courtesy of CHRYSLER LLC
Install the wheel speed sensor (2). Refer to SENSOR, Wheel Speed, Front , Installation .

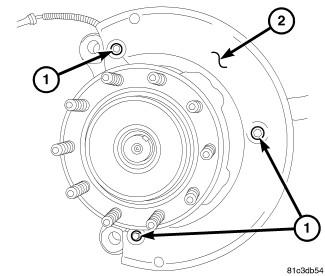

Fig 6: Dust Shield
Courtesy of CHRYSLER LLC
Install the dust shield (2) if removed.

Fig 7: Identifying Axle Shaft Nut, Hub Extension, And Disc Brake Rotor
Courtesy of CHRYSLER LLC
Install the disc brake rotor (1) and extension (2) to the hub/bearing.

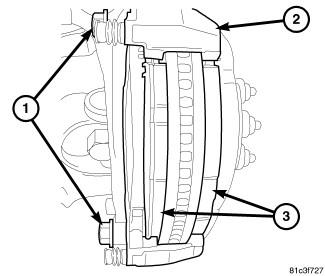

Fig 8: Disc Brake Pads
Courtesy of CHRYSLER LLC
Install the disc brake caliper adapter (2) and bolts (1).

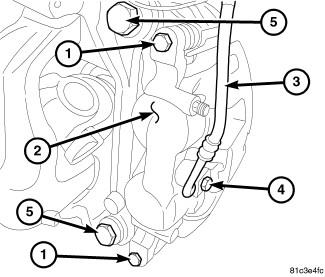

Fig 9: Caliper & Components
Courtesy of CHRYSLER LLC
Install the disc brake caliper (2) and tighten the bolts (1).
Install tie-rod or drag link end onto the steering knuckle arm.
