2500, 3500
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle.
- Remove the wheel and tire assembly.
- Remove the hub extension (1) mounting nuts and remove the extension from the rotor if equipped.
- Remove the brake caliper. Refer to CALIPER, Disc Brake , Removal .

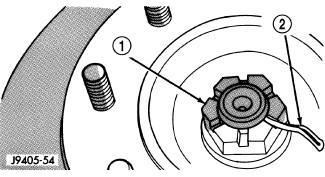

- Remove the cotter pin (2) and the hub nut (1) from the axle shaft.
- Remove the caliper adapter. Refer to ADAPTER, Disc Brake Caliper , Removal .
- Remove the disc brake rotor. Refer to ROTOR, Brake , Removal .
- Disconnect the wheel speed sensor wire.

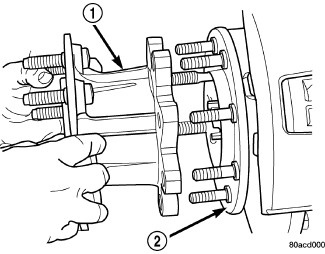

- Remove the hub/bearing 4 mounting bolts and remove the hub/bearing.
