4500 And 5500

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

If installing a NEW hub/bearing on a 4X4 only  Steps 1 - 3 should be followed for the correct shim size.

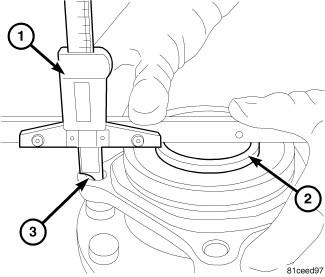

Fig 1: Measuring From Hub/Bearing Unit Crimp To Flange
GC0107543Courtesy of CHRYSLER LLC
  1. Measure from the new hub/bearing unit crimp (2) to the flange (3).
  2. Choose the correct shim according to the table:
    HUB MEASURED 29.50 to 29.83 mm (1.16 to 1.17 in) 29,84 to 30,18 (1.17 to 1.18 in) 30,19 to 30,53 (1.18 to 1.20 in) 30,54 to 30,88 (1.20 to 1.21 in) 30,89 to 31,23 (1.21 to 1.22 in) 31,24 to 31,50 (1.22 to 1.23 in)
    SHIM THICKNESS 7.00 mm (0.27 in) 6.65 (0.26 in) 6.30 (0.24 in) 5.95 (0.23 in) 5.60 (0.22 in) 5.25 (0.20 in)

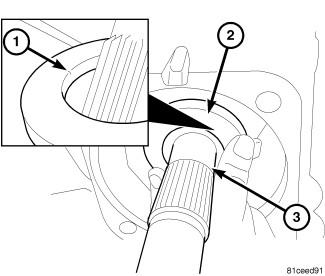

    Fig 2: SHIM
    GC0143691Courtesy of CHRYSLER LLC
  3. Check the shim (2) on the axle shaft (3). Be sure that the shim (2) is placed with the radius side (1) to the joint.
    Fig 3: Hub/Bearing Bolts
    GC0107541Courtesy of CHRYSLER LLC
  4. Install the hub/bearing to the knuckle and tighten the hub/bearing bolts (1) to specifications. Refer to SPECIFICATIONS .
    Fig 4: Identifying Axle Shaft Nut, Hub Extension, And Disc Brake Rotor
    GC0107539Courtesy of CHRYSLER LLC
  5. Install the axle nut (3) and tighten to specifications. Refer to SPECIFICATIONS .
    Fig 5: Identifying Wheel Speed Sensor And Mounting Bolt
    GC0107540Courtesy of CHRYSLER LLC
  6. Install the wheel speed sensor 2) to the hub and tighten the bolt (1). Refer to SENSOR, Wheel Speed, Front , Installation .
    Fig 6: Identifying Axle Shaft Nut, Hub Extension, And Disc Brake Rotor
    GC0107539Courtesy of CHRYSLER LLC
  7. Install the disc brake rotor (1). Refer to ROTOR, Brake , Installation .
  8. Install the hub extension (2) and nuts to the front rotor and tighten nuts to specifications. Refer to SPECIFICATIONS .
  9. Install the brake caliper adapter with the caliper. Refer to ADAPTER, Disc Brake Caliper , Installation .
  10. Install the wheel and tire assemblies. Refer to Wheels , Standard Procedure .
  11. Remove the support and lower the vehicle.
  12. Apply the brakes several times to seat the brake shoes and caliper piston. Do not move the vehicle until a firm brake pedal is obtained.
