2500, 3500

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

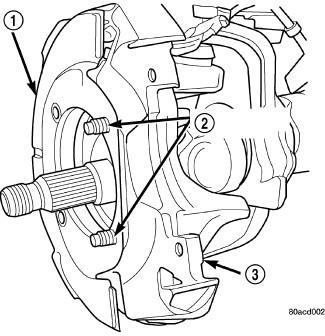

Fig 1: Brake Shield
GC0107542Courtesy of CHRYSLER LLC
  1. Position the brake shield (1) on bolts.
  2. Install the hub/bearing to the knuckle and tighten the hub/bearing bolts (2) to specifications. Refer to SPECIFICATIONS .
  3. Install the hub nut and tighten to specifications. Refer to SPECIFICATIONS .
  4. Install the wheel speed sensor to the hub. Refer to SENSOR, Wheel Speed, Front , Installation .
  5. Install the disc brake rotor. Refer to ROTOR, Brake , Installation .
  6. Install the brake caliper adapter with the caliper. Refer to ADAPTER, Disc Brake Caliper , Installation .
  7. If equipped, install the hub extension and nuts to the front rotor and tighten nuts to specifications. Refer to SPECIFICATIONS .
  8. Install the wheel and tire assemblies. Refer to Wheels , Standard Procedure .
  9. Remove the support and lower the vehicle.
  10. Apply the brakes several times to seat the brake shoes and caliper piston. Do not move the vehicle until a firm brake pedal is obtained.
