2500, 3500
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

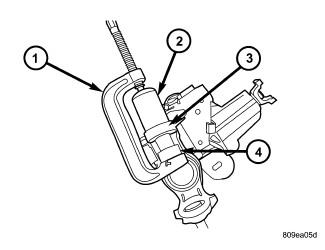

| 1 - SPECIAL TOOL C4212F |
| 2 - SPECIAL TOOL 6761 |
| 3 - KNUCKLE |
| 4 - SPECIAL TOOL 8445-3 |
- Remove the steering knuckle. Refer to KNUCKLE, Steering , Removal .
- Remove the axle shaft from the axle. Refer to appropriate DRIVELINE/AXLES article.
- Position Ball Joint Installer (special tool #6761, Installer, Ball Joint) (RECEIVER) (2) and Remover/ Installer (special tool #8445-3, Remover, Ball Joint) (DRIVER) (4) with Ball Joint Press (special tool #C-4212F, Press, Ball Joint) (1) as shown in illustration to remove upper ball stud.
