WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

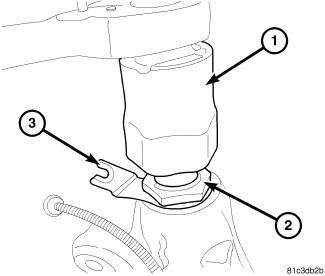

- Install the wheel speed sensor bracket (3) to the upper ball joint (2).
- Screw the upper ball joint (2) into the steering knuckle and tighten to specifications. Refer to SPECIFICATIONS .
- Reconnect the wheel speed sensor wire into the bracket (3).

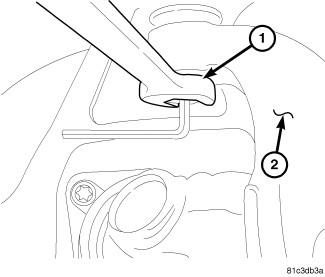

- Install the upper ball joint mounting nut and tighten to specifications. Refer to SPECIFICATIONS .
- Remove the support from the steering knuckle.
- Install the tire and wheel assembly.
