2500, 3500
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

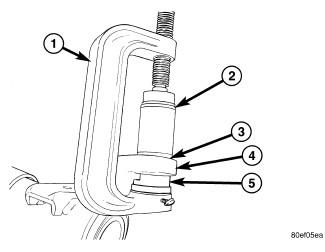

| 1 - SPECIAL TOOL C4212-F |
| 2 - SPECIAL TOOL 8445-2 |
| 3 - BALL JOINT |
| 4 - KNUCKLE |
| 5 - SPECIAL TOOL 8975-5 |
- Position Remover/ Installer (special tool #8445-2, Installer, Cup) (DRIVER) (2) and Ball Joint Remover/Installer (special tool #8975-5, Receiver, Ball Joint) (RECEIVER) (5) with Ball Joint Press (special tool #C-4212F, Press, Ball Joint) (1) as shown in illustration to install upper ball stud (3).
- Install the axle shaft into the axle. Refer to appropriate DRIVELINE/AXLES article.
- Install the steering knuckle. Refer to KNUCKLE, Steering , Installation .
