4500 And 5500

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the axle shaft from the axle.
  2. Remove the steering knuckle. Refer to KNUCKLE, Steering , Removal .

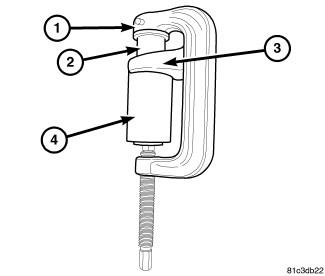

    Fig 1: Identifying Lower Ball Joint, Receiver, Driver, And Press
    GC0107529Courtesy of CHRYSLER LLC
  3. Position special tool (special tool #9859-4, Cup, Receiver) (RECEIVER) (4) and (special tool #9859-3, Disc, Ball Joint Remover) (DRIVER) (2) with tool (special tool #C-4212F, Press, Ball Joint) (PRESS) (1) shown in illustration to remove lower ball stud.
