2500, 3500

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

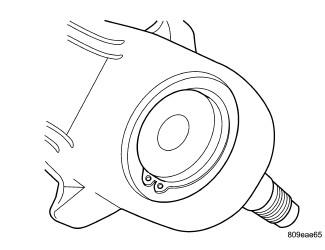

Fig 1: Lower Snap Ring

Courtesy of CHRYSLER LLC

Remove the steering knuckle. Refer to KNUCKLE, Steering , Removal .
Remove the axle shaft from the axle. Refer to appropriate DRIVELINE/AXLES article.

Remove lower snap ring from the lower ball joint.

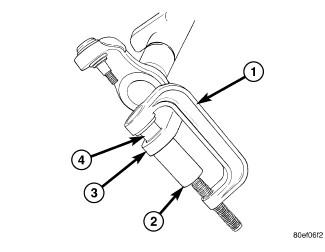

Fig 2: Lower Ball Joint Removal

Courtesy of CHRYSLER LLC

1 - SPECIAL TOOL
C4212F

2 - SPECIAL TOOL
8975-2

3 - KNUCKLE

4 - SPECIAL TOOL
8975-4

Position Ball Joint Remover/Installer (special tool #8975-2, Cup, Remover) (RECEIVER) (2) and Ball Joint Remover/Installer (special tool #8975-4, Remover, Ball Joint) (DRIVER) (4) with Ball Joint Press (special tool #C-4212F, Press, Ball Joint) (1) as shown in illustration to remove lower ball stud.
