4500 And 5500
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

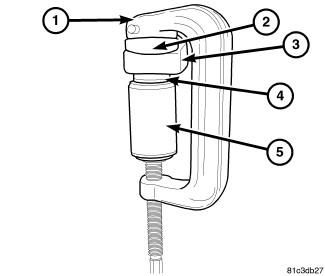

- Position special tool (special tool #9859-1, Cup, Installation) (DRIVER) (5) and (special tool #9859-2, Base, Pressing) (RECEIVER) (2) with (special tool #C-4212F, Press, Ball Joint) (PRESS) (1) as shown in illustration to install lower ball stud (4).
- Install the steering knuckle. Refer to KNUCKLE, Steering , Installation .
- Install the axle shaft into the axle.
